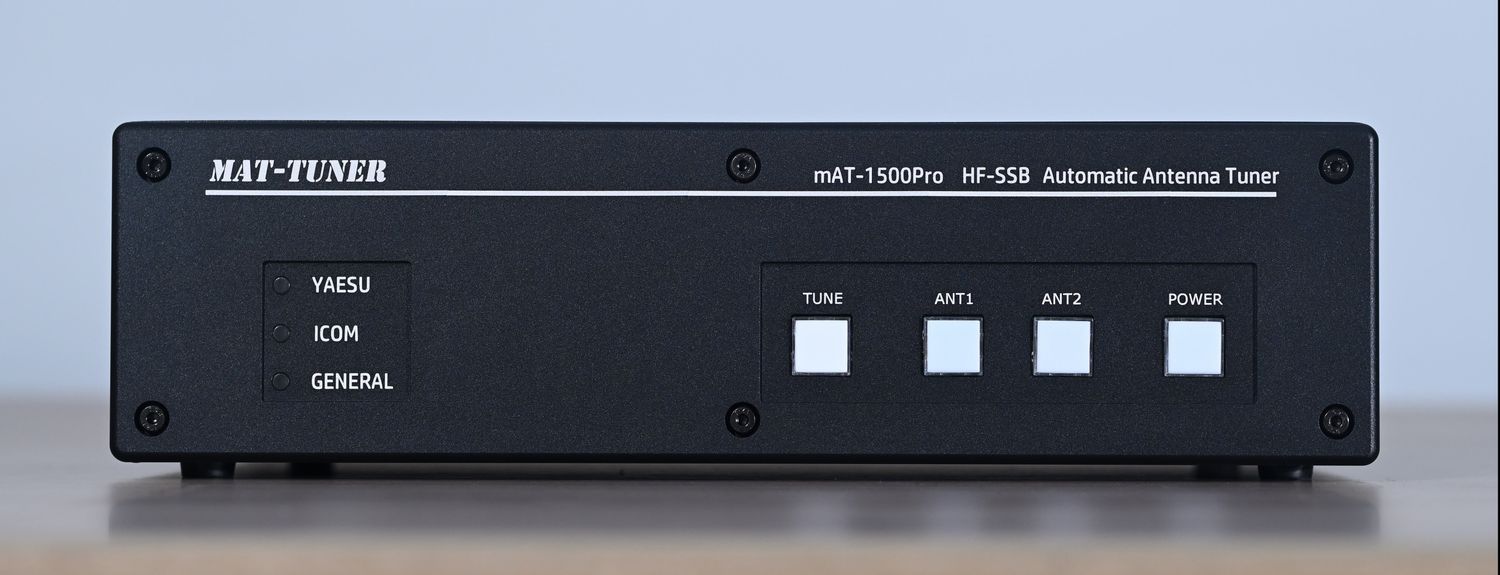

mAT-1500Pro 1500 watt automatic antenna tuner.

1500 watts SSB/CW, 800 watts data modes. Intelligent control from many Icom, Kenwood, and Yaesu transceivers.

Main features:

• 1500 watts SSB/CW, 800 watts digital modes
• built-in Icom, Kenwood and Yaesu interfaces to allow tuner control direct from transceiver
• usable with any HF radio or amplifier
• 1.8-54 MHz
• 16000 memories
• 5-1500 ohms matching range, L network
• 2 position antenna switch, front panel selectable

mAT-1500Pro features a transceiver interface controllable from the front panel TUNE button of your transceiver like other external automatic antenna tuners. Connect an optional mAT-CI, mAT-CK, or mAT-CY cable. Press TUNE, the transceiver sends a low power signal to actuate the tuner and disables the keying line of the connected amplifier. Even if the amp is on and in operate mode it will not go into transmit when the tuner is in the tuning sequence.

Can be used with any HF radio and amplifier in GENERAL mode without transceiver control. The tuner is supplied with a PTT loop. Relay keying sequence is transceiver > tuner > amplifier. When the TUNE button on the front of the mAT-1500Pro tuner is used, the PTT output to the amplifier is disabled preventing it from transmitting.

For Yaesu: connect mAT-CY cable from transceiver to amplifier. Connect RCA cable from loop output on tuner to amplifier keying relay. No direct connection from transceiver to amp to key the amplifier is used. Loop output is disabled when the TUNE button is used.

For Icom/Kenwood: connect mAT-CI or mAT-CK cable from transceiver to amplifier. Connect linear amplifier keying relay from transceiver to tuner PTT loop input. Connect RCA cable from loop output on tuner to amplifier keying relay. Loop output is disabled when the TUNE button is used.

Remote interface via a pair of RJ-45 jacks on the rear panel allows control of the tuner with external 12 VDC or closure to ground signals (not a LAN interface).

Specifications:

• Frequency range: 1.8-54 MHz
• Usable power range: 1500 watts (SSB/CW), 800 watts data modes
• Tuning sequence input power: 0.5-15 watts
• Tuning time: non-memory, under 5 seconds. From pre-saved memory 0.1 seconds
• Memories: 16000
• Power: 12-14 VDC, max 1A. If used with control cable, power supplied via transceiver. DC power plug on rear panel.
• Operating temperature: 14-140 F (10-60 C)
• Size: (HWD) 3.1 x 11.4 x 9.6 inches (78 x 290 x 243 cm)
• Weight 7.71 lb (3.5 kg)

mAT-1500Pro is not usable for QSK (full break-in) CW operation.
